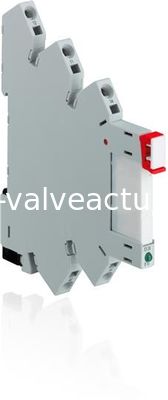

Pluggable Interface Electronic Control Relay CR - S Range Cr-S048/060vadc1sz 250vac Spring Terminals

Pluggable Interface Electronic Control Relay CR - S Range Cr-S048/060vadc1sz 250vac Spring Terminals

ব্র্যান্ড নাম: ABB
মডেল নম্বর: CR-S048/060VADC1SZ
MOQ: 2 sets
অর্থ প্রদানের শর্তাবলী: T/T
সরবরাহের ক্ষমতা: 1000sets
বিস্তারিত তথ্য
Place of Origin:
China
Product Type::
CR-S048/060VADC1SZ
Function:
ccessory for interface relays CR-S
Sub-Function:
Socket
Rated Control Supply Voltage (Us):
48 … 60 V AC/DC
Terminal Type:
Spring Terminals
Packaging Details:
Wooden box packing
Supply Ability:
1000sets
বিশেষভাবে তুলে ধরা:

electronics relay

,

delay time relay

পণ্যের বর্ণনা

CR-S Range

The slim line of interface relays and optocouplers

The pluggable interface relays and optocouplers of the CR-S Range are used for electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC, iPC or field bus systems and the sensor / actuator level. The CR-S Range combines the flexibility of a modular system and the ability of switching high currents on a small footprint thus can be used in applications where space saving is essential.

Main benefits

  • Space saving
  • Modular
  • LED integrated on all sockets

Main features

  • 9 different coil voltages from 5-24 V DC / 12-230 V AC/DC
  • 1 c/o contact (6 A), Transistor, MOS-FET, Triac
  • Optional gold plated version available
  • LED integrated in all sockets
  • Complete variants for high runners such as 24 V AC/DC, 110 V AC/DC, 230 V AC/DC
  • Accessories like jumper bars, markers and separators avialable

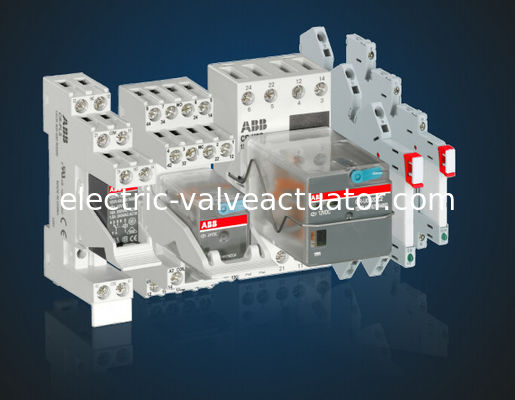

Pluggable interface relays CR-S Range

− Complete variation (relays assembled on socket) for highrunners:

− 24 V AC/DC, 110 V AC/DC, 230 V AC/DC

− Relay with standard and gold-plated contacts

− Standard (AgSnO2), gold-plated (AgSnO2/Au)

− Sockets with LED

− Screw/spring connection terminal

− Cadmium free contact material

− Further accessories

− Jumper bar, marker, separator



Pluggable Interface Electronic Control Relay CR - S Range Cr-S048/060vadc1sz 250vac Spring Terminals 0
