JM-C-5S ঘূর্ণমান গতি সেন্সর মনিটরিং এবং সুরক্ষা ডিভাইস Jianglin প্রযুক্তি

JM-C-5S Rotational Speed Sensor Monitoring and Protection Device Jianglin Technology
JM-C-5S Rotational Speed Sensor Monitoring and Protection Device Jianglin Technology JM-C-5S Rotational Speed Sensor Monitoring and Protection Device Jianglin Technology

বড় ইমেজ :  JM-C-5S ঘূর্ণমান গতি সেন্সর মনিটরিং এবং সুরক্ষা ডিভাইস Jianglin প্রযুক্তি

পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: OEM
Model Number: JM-C-5S
প্রদান:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
বিস্তারিত পণ্যের বর্ণনা
লক্ষণীয় করা:

electronic measuring devices

,

rotational speed measurement

JM-C-5S Rotational Speed Sensor Monitoring and Protection Device



JM-C-5S Rotating Speed Monitoring and Protection Device

Use

      This device mainly applies to rotating speed real time measuring. It can use suitable sensor in accordance with actual situation.This device greatly improvedthe simplicity of installation and relivbility, it can works on a rotating mechanism with 1 to 120 evenly distribyted teeth, and accuracr of 1 r/min. It has maximumvalue memory and diaplay, 2 alarm switch outputs, 4~20 mA current output and other functions.

      The device prominents people-centered guiding ideology, it is highly intelligent, fully operational with control panel, suitable for on-line monitoring for a long time, needing no site maintenance.



Functions

1.Highly Intelligent, all parameters canbe set on a control panel.

2.Suitable for on-line monitoring for a long time, easy to install and debug, needing no site maintenance.

3.2 level alarm switch output.

4.4~20mA  analog current output.

5.Free configurations of measuring range, alarm and dangerous parameters.

6.Record and inquirie of maximum sample value.

7.Passwork protection function.



Technical Parameters

1.Display mode: Digital LED display

2.Measuring ranger: 0~9999 r/min

3.Measuring accuracy: ±1 r/min

4. Alarm configuration: Any value between 0~9999 r/min (factory number 3150 r/min)

5.Danger configuration: Any value between 0~9999 r/min (factory number 3270 r/min)

6.Tooth number configuration: Any number between 1~120(factory number 60)

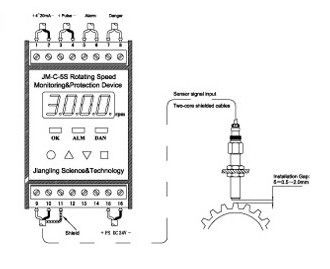

7.Input signals: CS-1, CS -3  rotating speed sensors, CWY-DO-Φ8mm eddy current sensor

8.Output signals: 2 level switch output: AC250V/5A, DC 27V/2A

                            Current output 4~20mA (load≤1KΩ)

                            PULSE signal output(12V peak-peak)

9.Working environment: Environmental temperature: -10~65℃ Relative humidity: ≤85%

10.Power voltage: DC +24V (power consumed≤3W)

11.Installation: DIN T-rail Installation

12. External dimension:75mm(height)×45mm(length)×105mm(depth)
