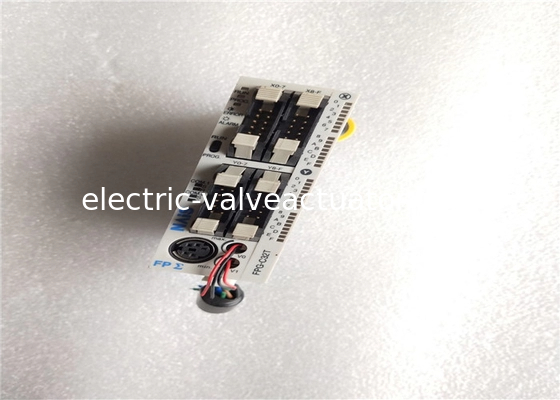

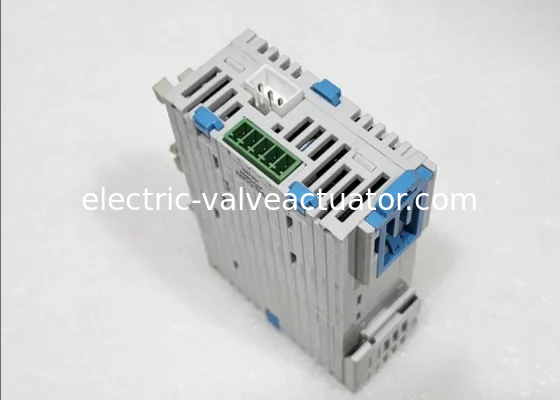

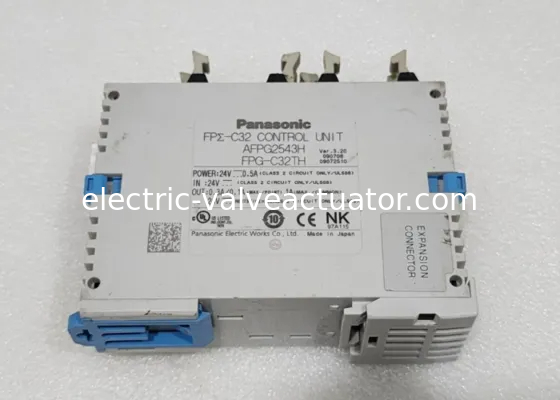

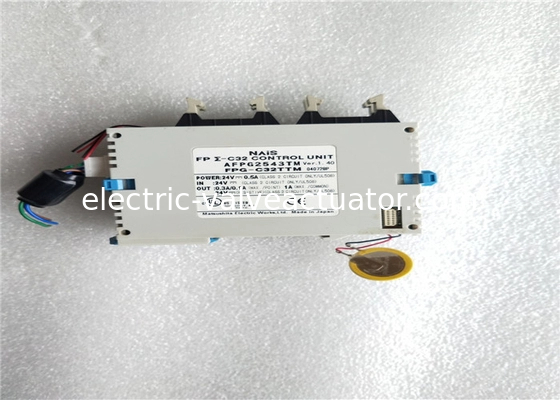

PLC Programmable Logic Controller Panasonic FP-Sigma series AFPG2543H

Name: PLC Programmable Logic Controller Panasonic FP-Sigma series AFPG2543H
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AFPG2543H
Price: 285.00 USD
Availability: InStock

ব্র্যান্ড নাম:	Panasonic
মডেল নম্বর:	AFPG2543H
MOQ:	1
মূল্য:	আলোচনাযোগ্য
অর্থ প্রদানের শর্তাবলী:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
সরবরাহের ক্ষমতা:	In Stock

বিস্তারিত তথ্য

পণ্যের বর্ণনা

বিস্তারিত তথ্য

Place of Origin:

Japan

সাক্ষ্যদান:

Packaging Details:

New Original Box

Supply Ability:

In Stock

পণ্যের বর্ণনা

Detailed Product Description

Brand:	Panasonic	Type:	PLC Programmable Logic Controller
Number Of Outputs And Type:	16 - Pulse (4), PWM (4), Solid State (8)	Expandable:	3 Modules Max
Voltage - Supply:	24VDC	Operating Temperature:	0°C ~ 55°C
Power:	25W Max
Highlight:	ethernet plc controllers , industrial automation using plc

PLC Programmable Logic Controller Panasonic FP-Sigma series AFPG2543H

Panasonic PLC FPG-C32TH

Extended Product Type : FP-Sigma series
Product ID: FPG-C32TTM
PAnasonic Type Designation : FP-Sigma series

Features

Large program memory (32k commands)
Large data memory (32k words)
Efficient motion control functions
– 50kHz fast counter input
– 100kHz pulse output
– convenient positioning commands
Fastest processing time, 0.32µs/basic command
Real-time clock
Compact design (W 30 x H 90 x D 60mm)
Top communication performance thanks to 3 possible serial interfaces on the CPU
MODBUS RTU Master/Slave standard in all CPUs

Specification

Control unit : 32 points (DC input: 16, NPN output: 16)
With FP0 expansion units : Max. 128 points (up to 3 units) * When using transistor output type expansion units
Program capacity : 32 k steps (V3), 12 k steps (Existing model)

The following are some of the drive models, both new and used are stocked:

MSDA3A3A1A	MSDA5A3A1A	MSDA013A1A
MSDA023A1A	MSDA043A1A	MSDA083A1A
MDDA103A1A	MDDA153A1A	MDDA203A1A
MDDA253A1A	MDDA303A1A	MDDA353A1A
MSDA403A1A	MSDA503A1A	MSD023A1XXV
MSDA083A1XXV	MSD043A1X	MSDA043D1A
MQDA043A1A	MUDS043A1A	MUDS023A1A
MUDS083A1A	MUMS082A1E0S	MUDS083A1M
MUMA012P1T	MUMA022P1T	MUMA042P1T
MUMA042P1S	MUMA012P1S	MUMA022P1S
MUMS082P1S	MSDA043A1XXV	MSDA013A1XXV
MKDET1505P	MLDET2310P	MUMA082P1T
MLDET2510P	MKDET1310P	MUMS042A1AOS
MSM041A211	MQMA042A1E	MSMA022P1A
MSM042P1B	MSM042AJB	MSM011P1N
MQMA022S2P	MSM012AJA	MSM012P1F
MDMA152S1C	MSM042AJA	MQMA012C2P
MSMA022A1B	MSM021DJE	MSD043A1X
MSD043A1XX	MSM042A1A	MSM5AZA1B
MUMS012C2U1S	MUMS012A1F0S	MSMZ082A1B
MSD013A1XX	MSM012A1A	MSMA012C1A
MSDA013D1A	MSMA5AZS1A	MQMA012P1B
MSMD042P1T	MUMS022A1B0S	MFM082A1C
MQMA042A1E	MSMA022C1A	MSMA022C1E
