Name: Assembly-type Stainless Steel Junction Box Thermocouple WRR2-131B
Brand: OEM
SKU: WRR2-131B
Rating: 4.8 (139 reviews)

বাড়ি পণ্য চৌম্বক শ্রেনী গেজ

Assembly-type Stainless Steel Junction Box Thermocouple WRR2-131B

পণ্যের বিবরণ:

উৎপত্তি স্থল:	China
পরিচিতিমুলক নাম:	OEM
মডেল নম্বার:	WRR2-131B

প্রদান:

ন্যূনতম চাহিদার পরিমাণ:	1 set
প্যাকেজিং বিবরণ:	Wooden box packing
ডেলিভারি সময়:	15 days after signing the contract
পরিশোধের শর্ত:	T/T
যোগানের ক্ষমতা:	1000sets

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

লক্ষণীয় করা:

temperature measurement thermocouple

high temperature thermocouple

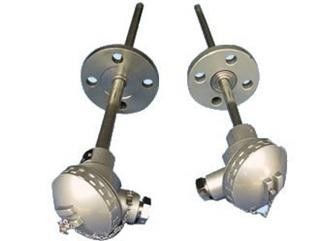

Assembly-type Stainless Steel Junction Box Thermocouple WRR2-131B

As the sensor of the temperature measurement, assembly-type stainless steel junction box thermocouple is used with displays, recorders and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from 0℃ to 1800℃ directly. According to national regulation, we have manufactured copper- copper nickel, iron-copper nickel etc. type of thermocouple since 1987. They are all not only in line of IEC international standard graduation but also JB/T9238-1999 standard.

It is a thermocouple without fixed device ,but with Ceram protective pipe.

Thermocouple category	Model	Graduation	Temperature measuring range℃	Specification		Thermal response time τ_0.5s
				Diameter mm	Protection tube material
Single platinum rhodium₃₀-platinum rhodium₆	WRR-130B	B	0~1600	Φ16	Corundum	＜150 ＜360 ＜150 ＜360
	WRR-131B			Φ25
Double platinum rhodium₃₀-platinum rhodium₆	WRR₂-130B			Φ16
	WRR₂-131B			Φ25

Notes:1) Structure Characteristics:Material of the non-plug part is 1 Cr18Ni9Ti

2) Diameter is 25mm and double porcelain casing.

Temperature measurement range and allowable error

Thermocouple types	Code	Graduation	Temperature measuring range	Allowable deviation△t℃
30%Platinum rhodium -6%platinum rhodium	WRR	B	0-1800	±1.5^oC or ±0.0025\|t\|
10%Platinum rhodium -platinum	WRP	S	0-1600	±1.5^oC or ±0.0025\|t\|
Nickel chrome-nickel silicon	WRN	K	0-1300	±2.5^oC or ±0.0075\|t\|
Nickel chrome-copper nickel	WRE	E	0-800	±2.5^oC or ±0.0075\|t\|
