Leakage Prevention Fast Response Thermocouple Splashproof Junction Box

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	OEM
Model Number:	WRR2-130

প্রদান:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden box packing
Delivery Time:	15 days after signing the contract
Payment Terms:	T/T
Supply Ability:	1000sets

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

লক্ষণীয় করা:

s type thermocouples

high temperature thermocouple

Leakage Prevention Fast Response Thermocouple Splashproof Junction Box

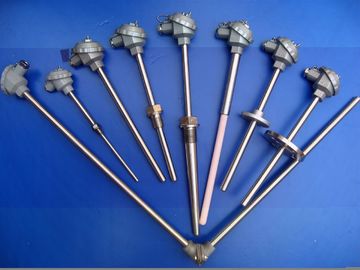

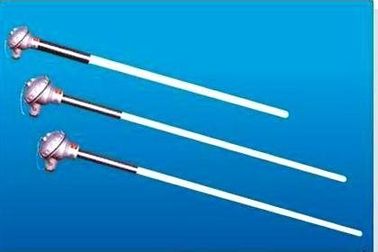

assembly-type thermocouple

As the sensor of the temperature measurement, assembly-type thermocouple is used with displays, recorders and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from 0℃ to 1600℃ directly. According to national regulation, we have manufactured copper- copper nickel, iron-copper nickel etc. type of thermocouple since 1987. They are all in line of IEC international standard graduation.

category	mode	graduation	range	Allowable error(△t℃)
Platinum 30% rhodium －Platinum 6%rhodium	WRR	B	0-1800	±1.5℃ or ±0.0025∣t∣
Platinum 10% rhodium－platinum	WRP	S	0-1600	±1.5℃ or ±0.0025∣t∣
Nickel chromium triangle－nisiloy	WRN	K	0-1300	±2.5℃ or ±0.0075∣t∣
Nickel chromium triangle－copper nickel	WRE	E	0-800	±2.5℃ or ±0.0075∣t∣

Models

WR□－□□□

W	Temperature meter
R	Thermocouple
□thermocouple material	R)platinum 30%rhodium－platinum 6% rhodium
	P)platinum 10%rhodium －platinum
	N)nickel chromium triangle－nisiloy
	E)nickel chromium triangle－copper nickel
□ install and fixed type	1)non-fixed molded type
	2)fixed screw type
	3)movable flange
	4)fixed flange type
	5)movable flange square type
	6)fixed screw protect tube type
□ junction box type	2)splash proof type
	3)waterproof type
	4)explosion suppression type
□ design series number	0)ø16mm protecting tube
	1)ø25mm protecting tube(double tubes)
	2)ø16mm high aluminum tube(single tube)
	3)ø20mm high aluminum tube

Upper and lower limits of thermocouple and insulating resistance:

Upper temperature limit(tm℃)	Test temperature(T℃ )	Resistance(MΩ)
100≤tm＜300	t=tm	10
300≤tm＜500	t=tm	2
500≤tm＜850	t=tm	0.5
850≤tm＜1000	t=tm	0.08
1000≤tm＜1300	t=tm	0.02
tm＞1300	t=1300	0.02
