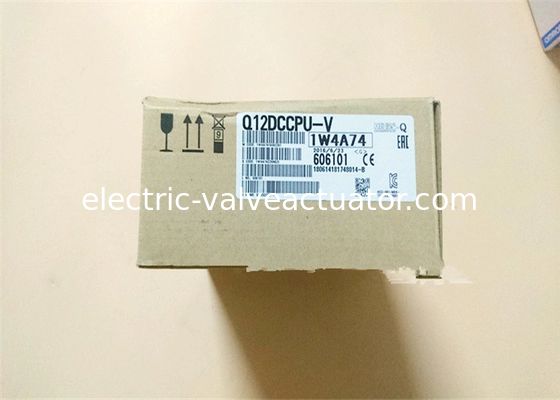

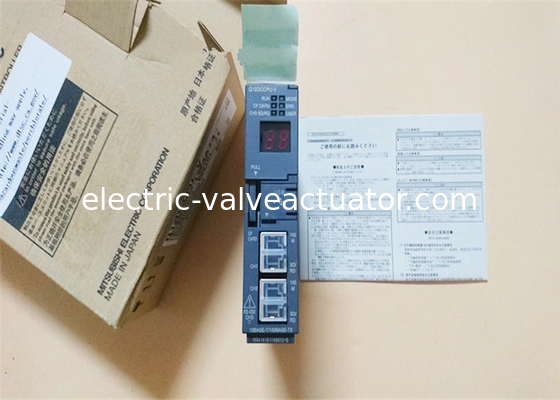

Q12DCCPU-V 4096 Points Mitsubishi Universal Model Redundant Power Supply Module

The Mitsubishi Q12DCCPU-V is a high-performance C-language controller module belonging to the MELSEC-Q series PLC family. It is designed for advanced automation systems requiring complex data processing and real-time control capabilities. This module uses the VxWorks Version 6.4 real-time operating system (RTOS) and supports programming in C/C++, making it ideal for applications demanding high-speed computation, large-scale data handling, and seamless integration with existing software libraries. It supports up to 4096 I/O points and includes built-in Ethernet and USB ports for enhanced connectivity and communication flexibility.

• High-Speed Processing: Capable of executing complex calculations and large-volume data processing rapidly, with instruction processing times as fast as 34 nanoseconds for certain operations.
• Dual Programming Modes: Offers both a Standard Mode and an Expanded Mode (Mode 12), with the expanded mode providing access to additional memory and network module functionalities.
• C/C++ Programming Support: Allows developers to leverage existing C/C++ codebases, reducing development time and enabling direct hardware access through dedicated function libraries.
• Advanced Connectivity: Features multiple programming interfaces, including a 12M USB port and a 115K RS-232 interface.
• Structured Programming: Supports five programming languages—Ladder Diagram, Statement List, ST (Structured Text), SFC, and FB—alongside structured programming for efficient code organization.
• Large Memory Capacity: Equipped with substantial built-in RAM and supports external memory cards like CF cards for program and data storage expansion.
• Robust Diagnostics: Includes constant scan monitoring (configurable from 0.5ms to 2000ms) and fault detection features to ensure system reliability.

Material: The module is housed in a robust industrial-grade casing designed to withstand harsh environments. It operates reliably within a temperature range of 0 to 55 °C and complies with international standards for shock and vibration resistance (JIS B3501, IEC 61131-2).

• Industrial Automation: Suitable for complex machinery control, high-speed processing lines, and sophisticated robotic systems.
• Data-Intensive Systems: Ideal for vision inspection systems and database management applications requiring large memory capacity.
• Customized Control Solutions: Its support for a real-time OS makes it fit for specialized control tasks in sectors like pharmaceuticals, food processing, and automotive manufacturing.
• Secure and Standalone Operations: Enhanced security features promote "PC-less" automation, reducing vulnerability and simplifying system architecture.
