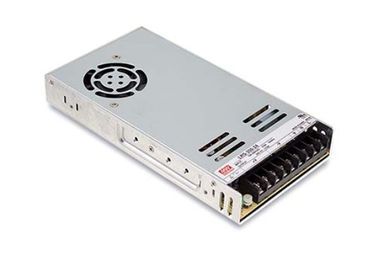

Name: Universal 24vac power supply Low Voltage Protection Devices 14.6A CURRENT
Brand: MEAN WELL
SKU: LRS-350-24
Price: 1 USD
Availability: InStock
Rating: 4.7 (115 reviews)

বাড়ি পণ্য কম ভোল্টেজ সুরক্ষা ডিভাইস

Universal 24vac power supply Low Voltage Protection Devices 14.6A CURRENT

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	MEAN WELL
Model Number:	LRS-350-24

প্রদান:

Minimum Order Quantity:	2 sets
Packaging Details:	Wooden box packing
Delivery Time:	15 days after signing the contract
Payment Terms:	T/T
Supply Ability:	1000sets

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

MODEL:

LRS-350-24

DC VOLTAGE:

24V

CURRENT RANGE:

14.6A

VOLTAGE ADJ. RANGE:

21.6 ~ 28.8V

লক্ষণীয় করা:

electrical protective devices

dc power contactor

100W Single Output Switching Power Supply , mean well AC/DC enclosed power supply .

Features :

Universal AC input / Full / range
Withstand 300VAC surge input for 5 second
No load power consumption < 0.2w
Miniature size and 1U low profile
Hihg operating temperature up to 70℃
Protections : Short circuit /over load / over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IE/EN61558-1, -2 -16 for household appliances
Operating altitude up to 5000 meters ( Note. 8 )
Withstand 5G vibration test
High efficiency , long life and high reliability
LED indicator for power on
Over voltage category III
100|% full load burn-in test
3 years warranty

Applications

Indusctrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments , equipments or apparatus

Description

LRS-35 series is a 35W signle-output enclosed type power supply with 30mm of low profile design , adopting the full range 85-264VAC input , the entire series provides an output voltage line of 5V ,12V , 15V , 24V , 36V and 48V .

In addition to the high efficiency up to 89% , the design of metallic mesh case enhances the heat dissipation of LRS-35 that the whole series operates from -30℃ through 70℃ under air convection without a fan . Delivering an extremely low no load power consumption ( less than 0.2W) , it allows the end system to easily meet the worldwide energy requirement . LRS-35 has the complete protection functions and 5G anti-vibration capablikty . it is complied with the international safety regulations such as TUV EN60950-1 , EN60335-1 , EN61558-1/2-16 , UL60950-1 and GB4943 . LRS-35 sereis serves as high price to performance power supply solution for various industrial applications .

Model	LRS-350-5	LRS-350-12	LRS-350-15	LRS-350-24	LRS-350-36	LRS-350-48
Dc output voltage	5V	12V	15V	24V	36V	48V
Rated output current	60A	29A	23.2A	14.6A	9.7A	7.3A
Output current rage	0-60A	0-29A	0-23.2A	0-14.6A	0-9.7A	0-7.3A
Rated Power	300W	348W	348W	350.4W	349.2W	350.4W
Wave and noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	200mVp-p
Voltage ADJ. range	4.5-5.5V	10.2-13.8V	13.5-18V	21.6-28.8V	32.4-39.6V	43.2-52.8V
Voltage tolerance	±3%	±1.5%	±1%	±1%	±1%	±1%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±2%	±1%	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	83.5%	85.0%	86.0%	88.0%	88.5%	89.0%
AC input voltage range	AC85~132AC/170~264V By switch 47~63Hz; 240~370VDC (Switch on 230VAC)
Input current	6.8A/115V 3.4A/230V
AC INnrush current	Cold-start 60A/115V,60A/230V
Overload proctection	110%~140% Potection type: Hiccp mode,recobers automatically after condition recoverd
Over-voltage protection	5.75-6.75V	13.8-16.2V	18.75-21.75V	28.8-33.6V	41.4-48.6V	55.2-64.8V
Over-voltage protection	Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time	1300ms,50ms/230VAC 1300ms,50ms/115VAC at full lod
Hold up time	16ms/230VAC ,12ms/115VAC at full lod
Withstand voltage	I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature	-30°C~+70°C
Overall dimension	21511530mm
Safety standards	Meet ULGB4943 UL60950 EN60950
EMC standards	Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Weight	0.76Kgs
