| উৎপত্তি স্থল: | China |
| পরিচিতিমুলক নাম: | MEAN WELL |
| মডেল নম্বার: | SE-100-24 |
| ন্যূনতম চাহিদার পরিমাণ: | 2 sets |
|---|---|
| প্যাকেজিং বিবরণ: | Wooden box packing |
| ডেলিভারি সময়: | 15 days after signing the contract |
| পরিশোধের শর্ত: | T/T |
| যোগানের ক্ষমতা: | 1000sets |
| MODEL: | SE-100-24 | DC VOLTAGE: | 24V |
|---|---|---|---|
| CURRENT RANGE: | 4.5A | VOLTAGE ADJ. RANGE: | 22.8 ~ 26.4V |
| লক্ষণীয় করা: | electrical protective devices,dc power contactor |
||

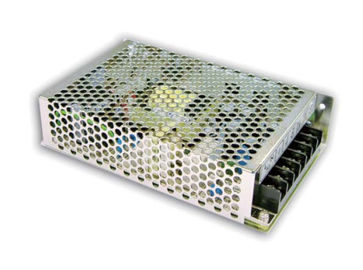

Original SE-100-24 24V/4.5A Single Output AC to DC High-power Switching Power Supply
Features :
| MODEL |
SE-200- 3.3 |
SE-200 -5 |
SE-200- 7.5 |
SE-200-12 | SE-200-15 |
SE-200- 24 |
SE-200- 27 |
SE-200- 36 |
SE-200- 48 |
|
|
OUTPUT |
DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 36V | 48V |
| CURRENT RANGE | 0 ~ 40A | 0 ~ 40A | 0 ~ 27A | 0 ~ 17A | 0 ~ 14A | 0 ~ 8.8A | 0 ~ 7.8A | 0 ~ 5.9A | 0 ~ 4.4A | |
| RATED CURRENT | 40A | 40A | 27A | 17A | 14A | 8.8A | 7.8A | 5.9A | 4.4A | |
| RATED POWER | 132W | 200W | 202.5W | 204W | 210W | 211.2W | 210.6W | 212.4W | 211.2W | |
| RIPPLE & NOISE (max.) Note.2 | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | 200mVp-p |
240mVp -p |
240mVp -p |
|
| VOLTAGE ADJ. RANGE | 2.97~3.7V | 4.5 ~ 5.6V | 6 ~ 9V | 10~13.5V | 13.5 ~18V | 20 ~ 26.4V | 26 ~ 32V | 32 ~ 40V | 41 ~ 56V | |
|
VOLTAGE TOLERANCE NOTE.3 |
2.0% | 2.0% | 2.0% | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% | |
| LINE REGULATION | 0.5% | |||||||||
| LOAD REGULATION | 1.5% | 1.0% | 1.0% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | |
| SETUP, RISE TIME NOTE.5 | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 20ms/230VAC 16ms/115VAC at full load | |||||||||
|
INPUT |
VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 75% | 79% | 82% | 85% | 85% | 87% | 88% | 89% | 89% | |
| AC CURRENT (Typ.) | 4.5A/115VAC 2.5A/230VAC | |||||||||
| INRUSH CURRENT (Typ.) | 40A/115VAC 55A/230VAC | |||||||||
| LEAKAGE CURRENT | <3.5mA / 240VAC | |||||||||
|
PROTECTION |
OVER LOAD | 105 ~ 150% rated output power | ||||||||
| OVER VOLTAGE | 3.8 ~ 4.6V | 5.75 ~6.75V | 9.4 ~ 10.9V | 13.8 ~16.2V | 18 ~ 21V | 27.6 ~32.4V | 33.7 ~39.2V | 41.4 ~46.8V | 57.6 ~67.2V | |
| OVER TEMPERATURE | 100 10 (RTH2) Detect on inside ambient temperature | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | -20 ~ +50oC (Refer to output load derating curve) | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85oC , 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | 0.03%/oC (0 ~ 50oC ) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2GY, Z axes | |||||||||
|
SAFETY &EMC(Note 4) |
SAFETY STANDARDS | UL60950-1 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25 / 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Design refer to EN55022 (CISPR22) Class A | |||||||||
|
EMS IMMUNITY |
Design | |||||||||
| OTHERS | MTBF | 271.9K hrs min. MIL-HDBK-217F (25 ) | ||||||||
| DIMENSION | 215*115*50mm (L*W*H) | |||||||||
| PACKING |
0.93Kg; 12pcs/12Kg/0.92CUFT |
|||||||||
Mechanical specification ( In mm)
