উৎপত্তি স্থল: | চীন |
পরিচিতিমুলক নাম: | DYLINK |
মডেল নম্বার: | SW1801D |
ন্যূনতম চাহিদার পরিমাণ: | 1 সেট |
---|---|
প্যাকেজিং বিবরণ: | কাঠের বক্স প্যাকিং |
ডেলিভারি সময়: | চুক্তি স্বাক্ষরের 15 দিন পরে |
পরিশোধের শর্ত: | টি / টি |
যোগানের ক্ষমতা: | 1000sets |
বিশেষ উল্লেখ: | SW1801D | কম্পিউটার সংযোগগুলি: | 8 |
---|---|---|---|
হোস্ট সংযোগকারী: | 8x ডিভিআই মহিলা ; 8x ইউএসবি টাইপ বি মহিলা | সর্বাধিক ডিজিটাল রেজোলিউশন: | 1920 x 1200 @ 60Hz |
অপারেটিং তাপমাত্রা বিন্যাস: | -40। + 55 ° সে | বিদ্যুৎ সরবরাহ: | DC12V / 1A |
মাত্রা (ডাব্লু এক্স এইচ এক্স ডি): | 438 মিমি এক্স 153 মিমি এক্স 44.5 মিমি | ||
লক্ষণীয় করা: | মহিলা ডিভিআই কেভিএম স্যুইচ,8 পোর্ট ডিভিআই কেভিএম স্যুইচ,ডিভিআই র্যাক মাউন্ট কেভিএম স্যুইচ |

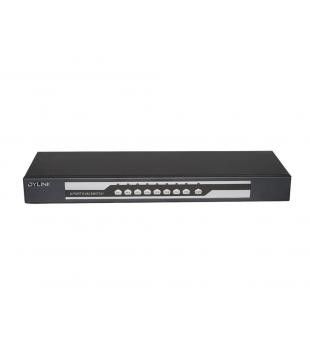

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
Specifications | SW1801D |
Computer Connections | 8 |

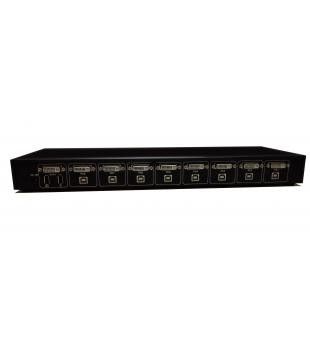

Host Connectors | 8x DVI Female;8x USB Type B female; |
Console Interfaces |
1x DVI Female; 2x USB Type A female; |
DVI Specification | V1.0 |
Maximum Digital Resolutions | 1920 x 1200@60Hz |
LED Indicators | 8 |
Port Selection | Push Button and Hotkeys |
Power Supply | DC12V/1A |
Operating TemperatureRange | -40 ~ +55°C |
Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
