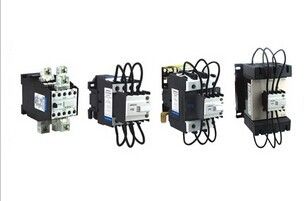

Small Low Voltage Protection Devices , Fantasy Capacitor Contactor

Small Low Voltage Protection Devices , Fantasy Capacitor Contactor

  • Small Low Voltage Protection Devices , Fantasy Capacitor Contactor
Small Low Voltage Protection Devices , Fantasy Capacitor Contactor
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: OEM
Model Number: CJ19
প্রদান:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packing
Delivery Time: 15 days after signing the contract
Payment Terms: T/T
Supply Ability: 1000sets
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
লক্ষণীয় করা:

electrical protective devices

,

low voltage protection circuit

Small Low Voltage Protection Devices , Fantasy Capacitor Contactor





Application
Model CJ19,CJ19B and CJ19C switching capacitor contactors (hereafter called“the contactor”for short) are the contactors specially used for make and break of low voltage shunt capacitors and widely used in reactive power used for make and break of capacitor up to 60kvar in electric power system of AC50Hz and rated working voltage 380V for the purpose of improvement of power factor. We have 25A, 32A, 43A, 63A, 80A, 95A contactors.
Main Technical Characteristics

Model

CJ19-32      CJ19-43    CJ19B-32   CJ19B-43   CJ19B-63
CJ16-32①  CJ16-43① CJ19C-32② CJ19C-43② CJ19C-63②

Quantity

model          contact       open            close
(Make)        (break)

400V controlled capacitor

Qnkvar  Output

18(16)            20              15               20              32

Rated current(A)

26(23)            29             21.6             29              46

CJ19-25,
32,43
CJ19B-
32,43
CJ19C-
32,43

20E           2            -13,14,
23,24

Conventional thermal current Ith A

32               43              32               43              69

02E            -           2               -         11,12,
23,24

Controlling capability to surge current



20In

11E            1           1           13,14      21,22

Coil

Working voltage US 50Hz V

220,380 or According to the requirements of users

CJ19-63
CJ19B-63
CJ19C-3

21E           2            1           13,14,     21,22

Operating range

0.85~1.1Us

12E            1           2            13,14      21,22

Consumed power(VA)     Start

68               68               115            115              200
12               12               11              11               20





Note: ①Model CJ19 can substitute for Model CJ16.
② The basic technical function of model CJ19C is the same as model C J 1 9 B , but the difference is that the former will switch off the circuit after its resistor circuit finishes controlling surge current.

Rated current for short-circuit protected fuse

1.5~2.5In

Rated insulation voltage Ui 50Hz  V

500             500             500            500             660

Conventional heating current of auxiliary contacts A

10

Mechanical life ten thousand times

100             100             100            100              80

Electrical life Operating frequency
120 1/h ten thousand times

10               10               10              10               8

Weight  kg

About 0.58   About 0.57   About 0.6         About 1.25
