IC693CMM321 Ethernet Plc Controllers , SERIES 90-30 Io Ethernet Module 4 Channels

PLC Programmable Logic Controller IC693CMM321 GE FANUC SERIES 90-30 Ethernet Interface Module

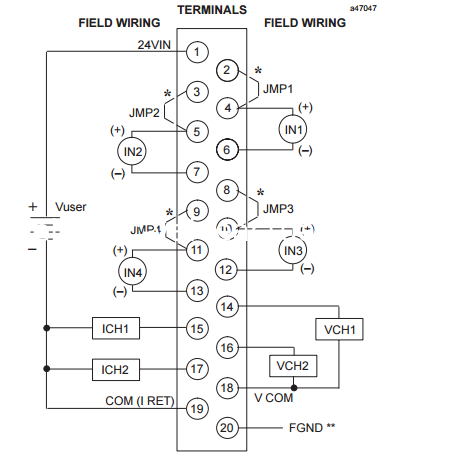

The Analog Current/Voltage Combination Input/Output module provides up to 4 differential input current or voltage channels and 2 single-ended output channels with either current loop outputs or voltage outputs. Each channel can be individually configured for the current or voltage range, as applicable, required for your application. All module configuration is done through software, except for a jumper required for selecting the current input mode. All ranges can be configured using either the Logicmaster 90-30/20/Micro programming software configurator function or the Series 90-30 Hand-Held Programmer.

Note that in this module’s description, the module will be simply referred to as the Analog Combo Module.

Each analog input is capable of providing five input ranges (two voltage and three current), which are:

• 0 to +10 volts (unipolar) - default range for both input and output channels.
• –10 to +10 volts (bipolar)
• 0 to 20 mA 4 to 20 mA
• 4 to 20 mA Enhanced

The default input range is voltage mode 0 to +10 volts (unipolar) with user data scaled so that 0V corresponds to a count of 0 and 10V corresponds to a count of 32767.

Each analog output is capable of providing four output ranges (two voltage and two current):

• 0 to +10 volts (unipolar) - default range for both input and output channels.
• –10 to +10 volts (bipolar)
• 0 to 20 milliamps
• 4 to 20 milliamp

QUICK DETAILS

1. Brand :GE
2. Model :IC693CMM321
3. Place of Origin : USA

DESCRIPTION

Outputs can be configured to either Hold Last State or to reset to the low end of their range if system power is interrupted. Outputs can also be configured to operate in ramp mode on command from the application program. In ramp mode, the output channel transitions to a new value over a period of time, rather than taking the new value immediately. High and low alarm limits can be set for all input channels and an open-wire fault (current output modes) can be reported to the CPU for each output channel. ALG442 modules in RX3i racks support firmware upgrades in the field.

SPECIFITIONS

Number of Input Channels: 4 differential
Input Ranges: 0 to 20 mA / 4 to 20 mA / 4 to 20 mA Enhanced
Resolution 0 to +10V: 2.5 mV (1 LSB = 2.5 mV)
Resolution -10 to +10V: 5 mV (1 LSB = 5 mV)
Input Filter Response: 29 Hz
Current Consumption From Internal +5V Supply: 95 mA
Current Consumption From External User Supply: 129 mA
Type of Device: Input / Output Analog, Current / Voltage
External Supply Voltage Range: 20 to 30 VDC (24 VDC typical)
Voltage Ripple: 10%
Power Consumption: 95 mA from internal +5 VDC,150 mA from external +24 VDC supply
Update Rate: Update Rate: 3 ms
Isolation, Field to Backplane and to Frame Ground: 250 VAC continuous; 1500 VAC for 1 minute
Analog Outputs: Two, Single?Ended
Output Ranges: 0 to 20 mA, 4 to 20 mA
Output Load Capacitance: 2000 pF (maximum)
Output Load Inductance: 1 H (maximum)

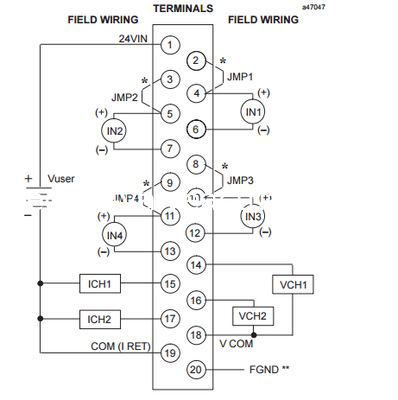

The Analog Current/Voltage Combination Input/Output module provides up to 4 differential input current or voltage channels and 2 single-ended output channels with either current loop outputs or voltage outputs. Each channel can be individually configured for the current or voltage range, as applicable, required for your application. All module configuration is done through software, except for a jumper required for selecting the current input mode. All ranges can be configured using either the Logicmaster 90-30/20/Micro programming software configurator function or the Series 90-30 Hand-Held Programmer.

Note that in this module’s description, the module will be simply referred to as the Analog Combo Module.

Each analog input is capable of providing five input ranges (two voltage and three current), which are:

• 0 to +10 volts (unipolar) - default range for both input and output channels.
• –10 to +10 volts (bipolar)
• 0 to 20 mA 4 to 20 mA
• 4 to 20 mA Enhanced

The default input range is voltage mode 0 to +10 volts (unipolar) with user data scaled so that 0V corresponds to a count of 0 and 10V corresponds to a count of 32767.

Each analog output is capable of providing four output ranges (two voltage and two current):

• 0 to +10 volts (unipolar) - default range for both input and output channels.
• –10 to +10 volts (bipolar)
• 0 to 20 milliamps
• 4 to 20 milliamps
