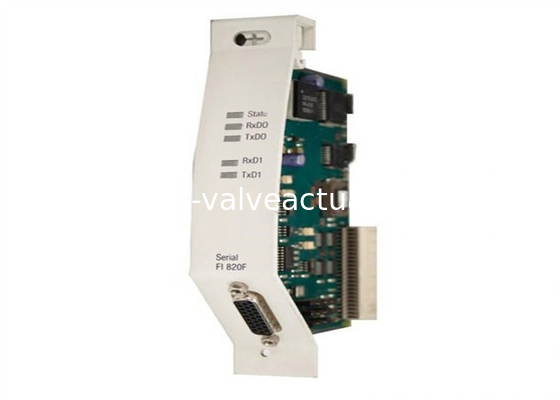

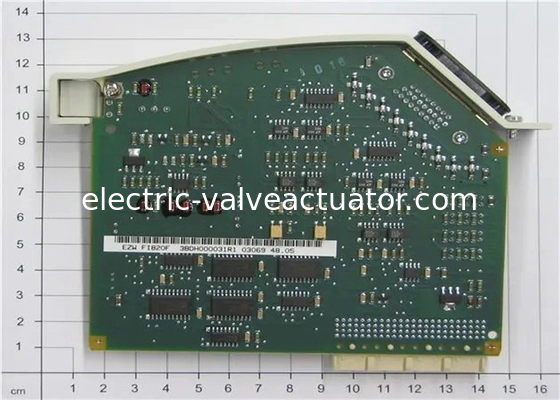

3BDH000031R1 ABB FI 820F Fieldbus Module Serial Communication Module

The ABB FI820F (model number 3BDH000031R1) is a high-performance I/O device engineered for process automation, specifically tailored for integration with ABB's System 800xA DCS. It delivers a flexible, scalable solution for controlling and monitoring complex systems, supporting multiple communication protocols such as Modbus and PROFIBUS DP, along with a diverse set of configurable inputs and outputs.

• Power Supply: 24 VDC
• Power Consumption: 10 W
• Number of I/O Points: 32
• Input/Output Types:
  • Analog Input
  • Analog Output
  • Digital Input
  • Digital Output
• Communication Protocols:
  • Modbus
  • PROFIBUS DP
• Operating Temperature: -40 to 70 °C (-40 to 158 °F)
• Humidity: 0 to 95% RH (non-condensing)
• Dimensions: 152 x 51 x 178 mm (6.0 x 2.0 x 7.0 in)
• Weight: 0.1 kg (0.2 lb)

• Oil and Gas
• Chemical
• Power Generation
• Pulp and Paper
• Water and Wastewater Treatment
• Pharmaceuticals
• Food and Beverage

• High performance and reliability
• Flexible and scalable design
• Support for diverse I/O types and communication protocols
• Easy installation and configuration
• Rugged construction to withstand harsh environments

• Enhanced process control and operational efficiency
• Cost reduction
• Improved plant safety
• Simplified maintenance procedures
